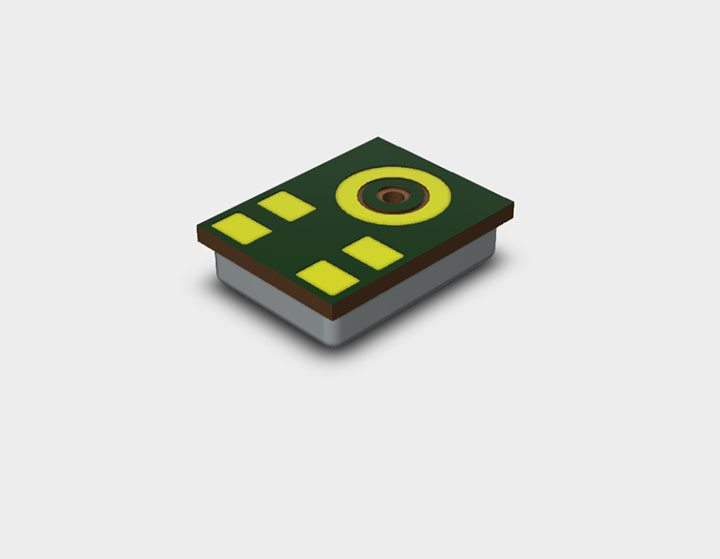

MA-HFA381-H13-1AF
MA-HFA381-H13-1AF 是一款高信噪比、單端輸出的頂部端口模擬 MEMS 麥克風，由一個 MEMS 傳感器和一個低噪聲級專用集成電路（ASIC）組成。
優(yōu)勢與特點
-
3.5×2.65×0.98 毫米頂部端口
-
單端輸出
-
窄靈敏度范圍 ±1 分貝
-
信噪比，達 66.5 分貝 A 計權(quán)（dBA）
-
射頻屏蔽
-
兼容標準表面貼裝回流焊技術(shù)（SMD）
-
符合 RoHS 標準且無鹵素
性能參數(shù)
| Parameter | Symbol | Condition | Min | Nom. | Max | Unit |
| Sensitivity | S | f=1kHz, Pin=1Pa, 0dB=1V/Pa | -39 | -38 | -37 | dB |
| Operating Voltage | VDD | 1.6 | 2 | 3.3 | V | |
| Directivity | Omni-directional | |||||
| Polarity | Sound pressure increase | Output voltage increase | ||||
| Sensitivity vs. Voltage | ΔS | Vs= 3.3V to 2.4V | 0.5 | dB | ||
| Output Impedance | ZOUT | f=1kHz | 400 | Ω | ||
| Current Consumption1 | I | 1.6 V to 3.3V | 85 | 200 | μA | |
| S/N Ratio | S/N | 20-20KHz Bandwidth, A-Weighted | 64.5 | 66.5 | dBA | |
| Total Harmonic Distortion | THD | 94dB SPL @1KHz | 0.11 | 0.5 | % | |
| Total Harmonic Distortion | THD | 116dB SPL @1KHz | 1 | % | ||
| Acoustic Overload Poin | AOP | THD 10%@1KHz | 124 | dBSPL | ||
| Power Supply Rejection | PSR | 100mVpp Squarewave @217Hz, A-weighted | -99 | -80 | dB | |
| Power Supply Rejection Ratio | PSRR | 200mVpp Sinewave @1KHz | 60 | 67 | dB | |
| DC output | VDC | 0.85 | V | |||
| Output load | Cload | 150 | pF | |||
| Output load | Rload | 10 | 100 | KΩ | ||
| Note：Frequency response, sensitivity and current consumption are tested by 100% on product line. | ||||||
