MA-HRA381-H23-3N
MA-HRA381-H23-3N 是一款小封裝、高信噪比且為模擬輸出的底部端口 MEMS 麥克風，由一個 MEMS 傳感器和一個低噪聲級專用集成電路（ASIC）組成。
優勢與特點
-

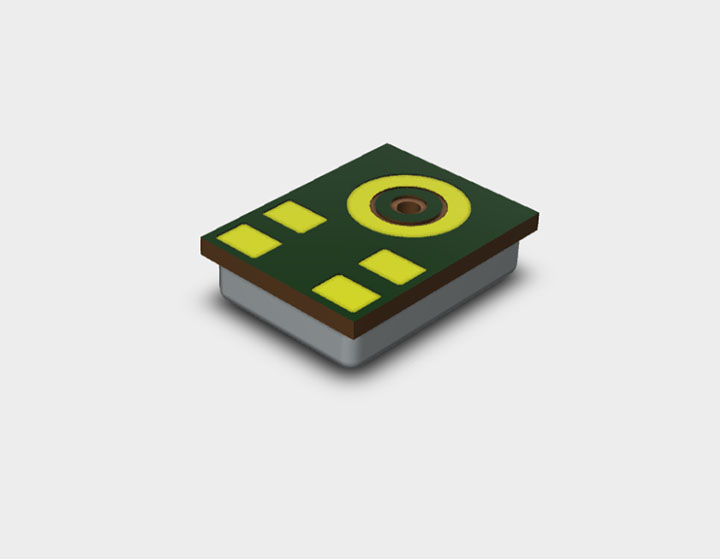

3.5×2.65×0.98 毫米底部端口
-
高信噪比，達 68 分貝 A 計權（dBA）
-
高聲學過載點（AOP），達 130 分貝聲壓級（dBSPL）
-
窄靈敏度范圍 ±1 分貝
-
射頻屏蔽
-
容標準表面貼裝回流焊技術（SMD）
-
符合 RoHS 標準且無鹵素
性能參數
| Parameter | Symbol | Condition | Min | Nom. | Max | Unit |
| Sensitivity | S | f=1kHz, Pin=1Pa, 0dB=1V/Pa | -39 | -38 | -37 | dB |
| Operating Voltage | VDD | 2.4 | 2.75 | 3.3 | V | |
| Directivity | Omni-directional | |||||
| Polarity | Sound pressure increase | Output voltage increase | ||||
| Sensitivity vs. Voltage | ΔS | Vs= 3.3V to 2.4V | 0.5 | dB | ||
| Output Impedance | ZOUT | f=1kHz | 400 | Ω | ||
| Current Consumption1 | I | 1.6 V to 3.3V | 110 | 200 | μA | |
| S/N Ratio | S/N | 20-20KHz Bandwidth, A-Weighted | 66 | 68 | dBA | |
| Total Harmonic Distortion | THD | 94dB SPL @1KHz | 0.1 | 0.5 | % | |
| Total Harmonic Distortion | THD | 116dB SPL @1KHz | 1 | % | ||
| Acoustic Overload Poin | AOP | THD 10%@1KHz | 130 | dBSPL | ||
| Power Supply Rejection | PSR | 100mVpp Squarewave @217Hz, A-weighted | -106 | -90 | dB | |
| Power Supply Rejection Ratio | PSRR | 200mVpp Sinewave @1KHz | 60 | 76 | dB | |
| DC output | VDC | 1.30 | V | |||
| Low Frequency Roll-off | LFRO | 30 | Hz | |||
| Output load | Cload | 150 | pF | |||
| Output load | Rload | 10 | 100 | KΩ | ||
| Note：Frequency response, sensitivity and current consumption are tested by 100% on product line. | ||||||
