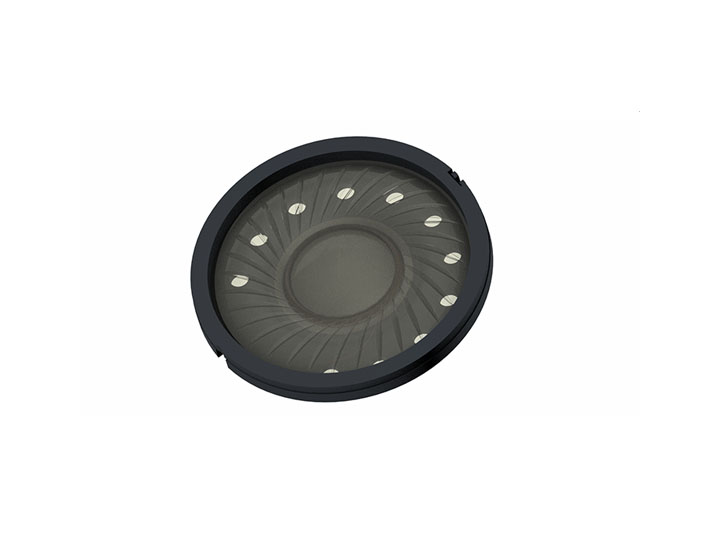

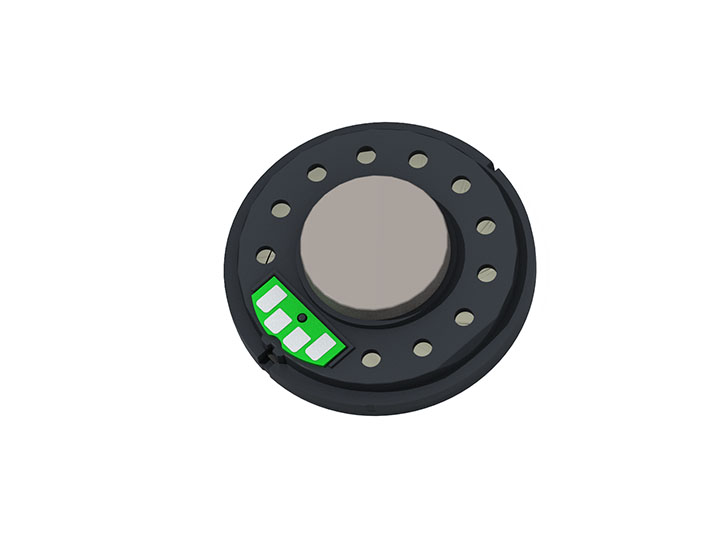

36mm_SC360090PA
車規級面板SPK
優勢與特點
-
響度大 High SPL
-
車規級品質 Automotive applicable
-
功率強勁 High power
-
用于汽車面板 For Automotive panel SPK
性能參數
| Impedance | 8±20%ohm |
| Sensitivity1 | 83.5±3dB （ At 0.8k 1.0k 1.5k 2.0kHz in 1W/1m average (0dB SPL=20μPa) with baffle） |
| Sensitivity2 | 81±3dB（ At 500Hz in 1W/1m with baffle） |
| Sensitivity3 | 83.5±3dB（ At 1000Hz in 1W/1m with baffle） |
| Rated Power | 1.5w |
| Maximum power | 2W |
| Resonance Frequency | 700±20%Hz |
